PL-5700 Rain Defence Louvres

  • PL-5700
  • 3D VIEW

PL-5700

3D VIEW

Concealed behind an attractive perforated skin, Perform PL-5700 louvres offer excellent weather performance, combined with good airflow and sight screening.

нула
нула

INTAKE

нула

EXHAUST

нула
  • нула
    Complex extruded blade design in vertical arrangement for maximum rain defence performance
  • нула
    Multiple channels in blades to collect and drain water from the louvred area
  • нула
    Perforated aluminium face conceals the louvre while offering modern appearance

    The screen can be supplied anodised or powder coated. Louvre modules are powder coated black as standard for maximum concealment.

  • нула
    Sightproof design
View 3D Model
Download Data Sheet
View Test Data

KEY FEATURES

  • Blade Orientation: Vertical
  • Mullion Type: Hidden behind perforated screen
  • Louvre Depth: 191mm
  • Blade Pitch: 51mm
  • Weight: 32kg/m2 based on a 2m x 2m module size

Download data sheet for sectional details

Download Data Sheet

PERFORMANCE

SUMMARY
  • Rain Penetration Class: A up to 3.0m/s
  • Airflow Class: 3 (entry & discharge)
  • Airflow Coefficient Ce (entry): 0.252
  • Airflow Coefficient Cd (discharge): 0.222
  • K factor (entry / discharge): 15.747 / 20.291
нула
нула

INTAKE

нула

EXHAUST

WIND DRIVEN RAIN PERFORMANCE (EN 13030:2001)
Core Ventilation Rate (m/s)0.00.51.01.52.02.53.03.5
Penetration Class (13m/s & 75mm/hr)AAAAAAAA
Effectiveness (%)10010010010010010099.897.1
AirflowCoefficient of Entry Ce0.252Class 3Coefficient of Discharge Cd0.222Class 3
RESISTANCE TO AIRFLOW

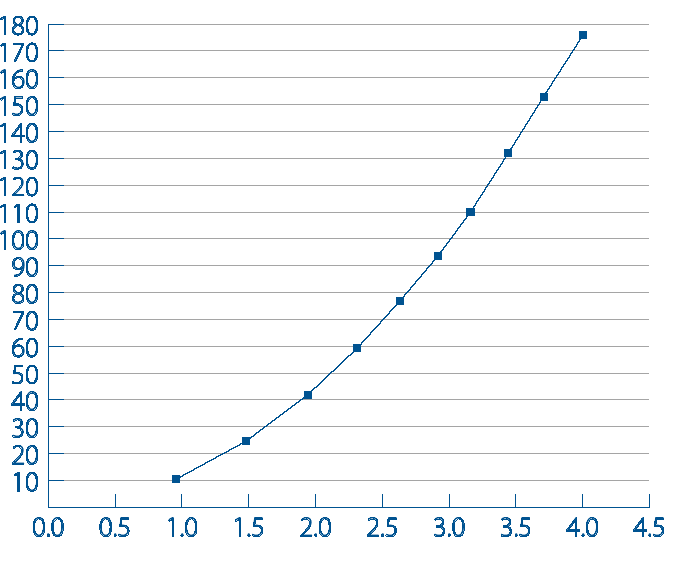

RESISTANCE TO AIRFLOW – ENTRY (Ce)2

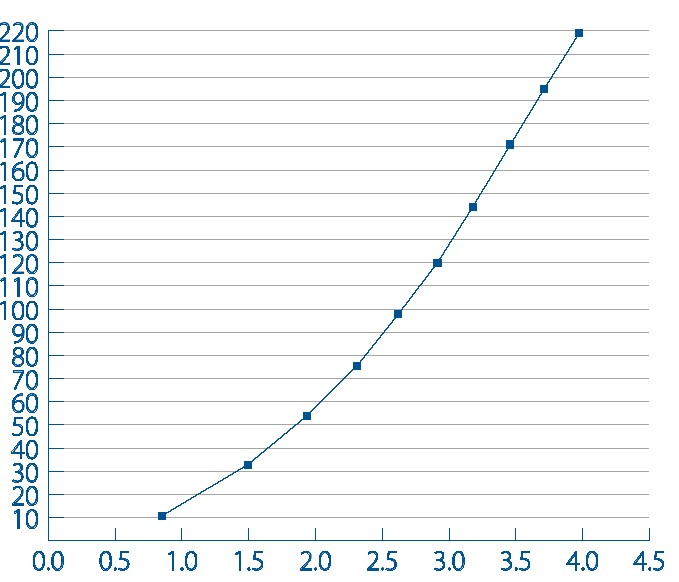

RESISTANCE TO AIRFLOW – DISCHARGE (Cd)2

Weather considerations:
Perform Louvres are not suitable for use in areas where perforations may become blocked or clogged with snow, ice, debris, or other occlusions. To maximise their performance, prevent property damage and provide a safe environment, they should be inspected and maintained regularly.

Note: Based on a 1m x 1m size. Smaller louvres may have a higher Pressure Drop.

MATERIALS & FINISHES

MATERIALS
  • Perforated sheet: 3mm thick aluminium alloy 1050 H14/H24 as standard.
  • Perforation pattern: 9.5mm Ø holes, with 12.7mm staggered centres and pitch.
  • Louvres: Aluminium alloy 6063-T6.
FINISH OPTIONS
  • Louvres: powder coated matt black as standard
  • Perforated sheet:
    • Mill finish aluminium
    • Clear or colour anodised
    • Polyester powder coated Matt (standard) or gloss

OPTIONAL EXTRAS

  • Head / cill / jamb cover plates
  • Blanking panels (single skin or insulated)
  • Bird / vermin guards, insect mesh
  • Louvred doors
  • Dampers
View all accessories
