Where continuous blade appearance is desired and high level of rain defence needs to be maintained, double bank arrangements offer a solution.
- A fronting ventilation louvre, in a choice of 75mm or 100mm blade pitch, offers a continuous blade appearance across a façade
- One of our rain defence models with vertical blade arrangement is located at the rear to provide excellent protection from wind driven rain ingress
- Where only parts of the façade are functionally active, blanking panels are used behind ventilation louvres in non-active areas, keeping costs down
- All double bank configurations shown have been tested for airflow performance

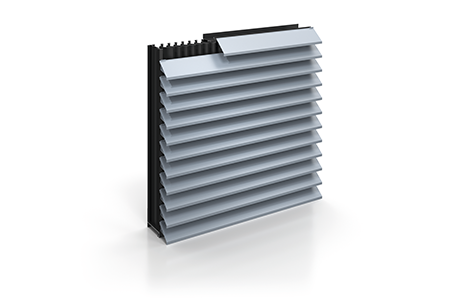

A-3105 / RSV-5700
Airflow Coefficient Ce (entry)
0.260
Airflow Coefficient Cd (discharge)
0.232
Blade Pitch (front)
75mm

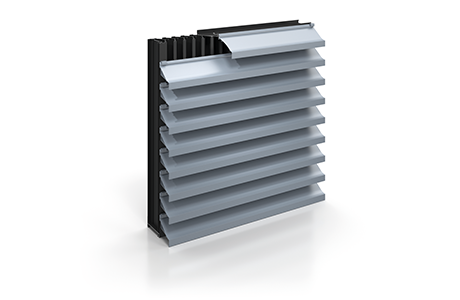

A-3105 / RS-5900
Airflow Coefficient Ce (entry)
0.294
Airflow Coefficient Cd (discharge)
0.299
Blade Pitch (front)
75mm

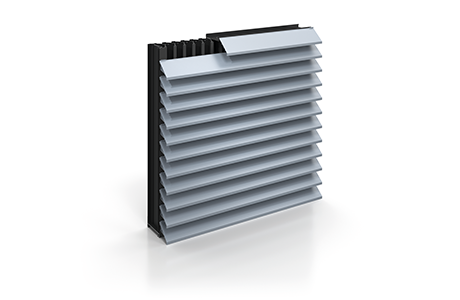

A-4085 / RSV-5700
Airflow Coefficient Ce (entry)
0.259
Airflow Coefficient Cd (discharge)
0.224
Blade Pitch (front)
100mm

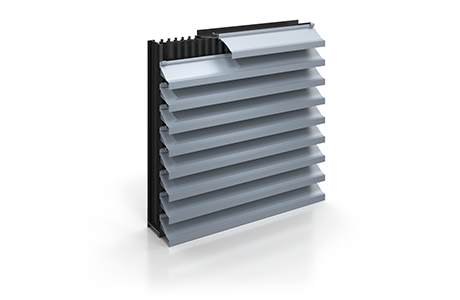

A-4085 / RS-5900
Airflow Coefficient Ce (entry)
0.290
Airflow Coefficient Cd (discharge)
0.287
Blade Pitch (front)
100mm
ПРОЕКТИ
Specification
The principal reason for using louvres is to allow the movement of air. But, louvre specification is a balance between form and function, with louvred façade appearance playing an important part in the selection process.
